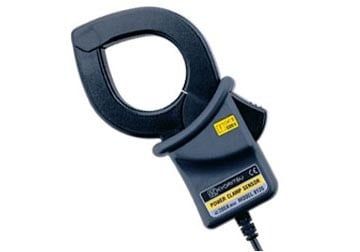

Ampe kìm Kyoritsu 8126

Nhà sản xuất: Kyoritsu
Giá bán
4,938,000₫
  • Số lượng sản phẩm: Còn
Ampe kìm Kyoritsu 8126 Thông số kỹ thuật: - Conductor size: Φ40 - Rated current: AC 200A - Output voltage: AC 500mV/200A (AC 2.5mV/A) - Accuracy |±0.5%rdg±0.1mV (50/60Hz) |±1.0%rdg±0.2mV (40Hz~1kHz) - Phase Shift: within ±1.0º (45~65Hz) - Withstand voltage: AC 5350V for 5 seconds - Cable length: Approx. 3m - Output connector: MINI DIN 6pin - Operating temperature ranges: 0~50ºC, less than 85% RH (without condensation) - Output impedance: Approx. 5Ω - Applicable standards: IEC 61010-1:2001, IEC 61010-2-032:2002 CAT.III 600V pollution degree 2 - Dimensions: 128(L) x 81(W) x 36(D) mm - Weight: Approx. 260g - Accessories: 9095 (Portable case), Instruction manual, Cable marker - Option: 7146 (Banana Φ4 adjuster plug) 7185 (Extension Cable)
